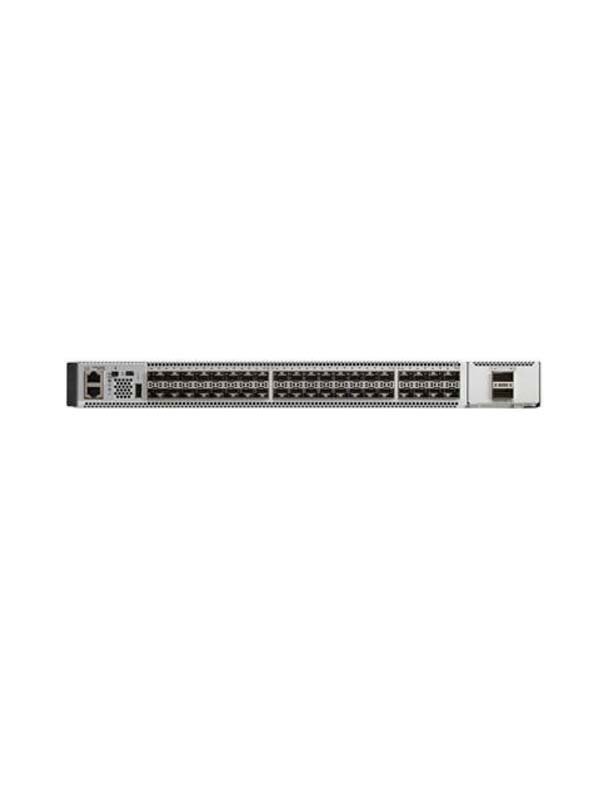

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP) and 10G Small Form-factor Pluggable Plus (SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

About Amarta Store
We are the bigest online IT Equipment distributor in Asia. Headquarter in Jakarta - Indonesia, we are providing our customer with worldwide shipping coverage. So, wherever your location is, we are ready to support your needs with the best price.

Switch
Security	Encrypted Traffic Analytics (ETA), Advanced Encryption Standard (AES)-256 MACsec encryption, Trustworthy systems, Security Group Access Control List (SGACL)
VLAN	Up to 4000 VLAN ID
Manageable	Yes
Layer 2 switching	Yes, STP, Trunking, private VLAN (PVLAN), Q-in-Q, Switched Port Analyzer (SPAN), Remote SPAN (RSPAN)
Layer 3 Switching	Yes, Static, RIPv1, RIPv2, RIPng, OSPF, EIGRP, BGPv4, IS-ISv4, PIM, PIM SM, SSM
Number of Port	40x SFP+
Stackable	Yes, StackWise Virtual with a 2-node topology
Redundant Power Supply	Yes, dual redundant power supplies
Rackmount	Yes
Warranty	Cisco Enhanced Limited Lifetime Hardware Warranty
